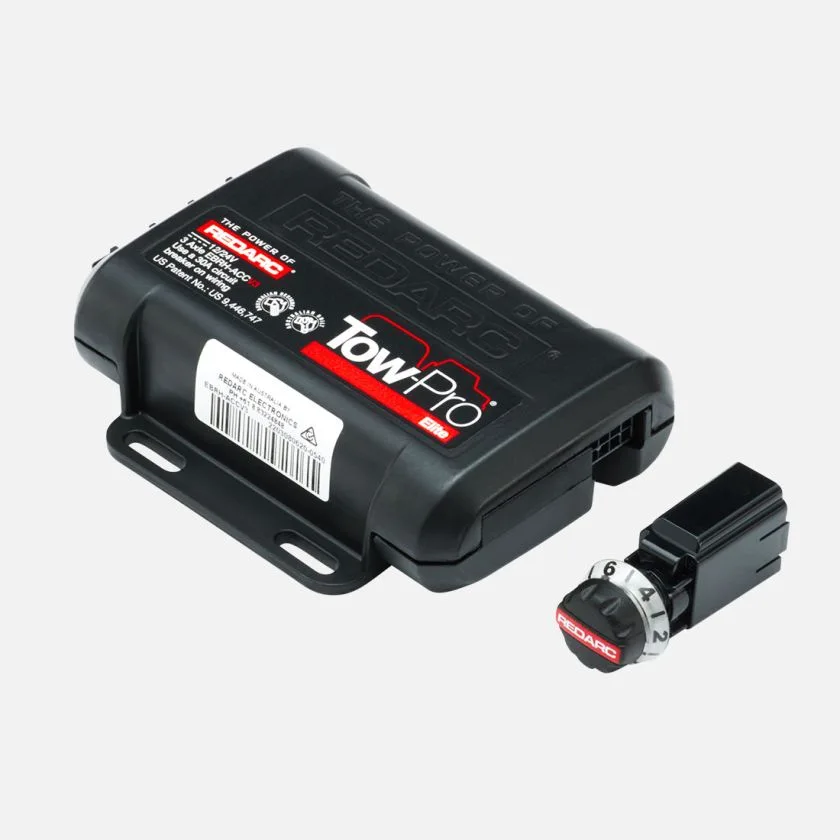

REDARC Tow-Pro Elite V3 Electric Brake Controller – EBRH-ACCV3
Advanced Electric Trailer Brake Control for On-Road & Off-Road Towing
The REDARC Tow-Pro Elite V3 is an Australian-designed electric trailer brake controller engineered for smooth, responsive and adjustable braking when towing caravans, camper trailers, boat trailers and other electrically braked trailers.
Featuring two selectable braking modes, Active Calibration and a discreet dashboard-mounted remote control, the Tow-Pro Elite V3 provides flexible braking performance for highway driving, gravel roads and challenging off-road conditions.
Unlike conventional bulky dashboard-mounted controllers, the main unit is concealed behind the dashboard, leaving only a compact adjustment knob visible.
Key Features
Proportional Braking Mode: Automatically adjusts trailer braking force according to vehicle deceleration for smooth, controlled braking during everyday driving.
User-Controlled Mode: Applies a driver-selected level of trailer braking, particularly useful in certain off-road conditions.
Manual Brake Override: Apply the trailer brakes independently of the vehicle brakes to assist with trailer control.
Active Calibration: Automatically learns the controller's mounting orientation during normal driving.
Discreet Dashboard Installation: Compact remote control knob with the main controller concealed behind the dashboard.
12V & 24V Compatibility: Suitable for a broad range of passenger vehicles, 4WDs and commercial vehicles.
Electric & Electric/Hydraulic Brakes: Supports compatible trailer braking systems.
Up to Three Trailer Axles: Suitable for supported trailers with one to three braked axles.
Vehicle-Specific Accessories: Compatible with selected REDARC Tow-Pro switch inserts and wiring kits for a factory-style installation.
Two Braking Modes
Everyday / Proportional Mode
Automatically adjusts trailer braking output in response to vehicle deceleration. Ideal for highway driving, urban roads and general towing.
User-Controlled Mode
Provides a driver-selected braking output independent of vehicle deceleration. Useful in selected off-road situations where more direct control is preferred.
The driver can adjust braking strength using the remote control knob to suit the trailer, load and driving conditions.
Manual Trailer Brake Override
The integrated push-button control allows the trailer brakes to be activated independently of the vehicle's brake pedal.
This can assist with controlling trailer sway when used appropriately. It does not replace correct trailer loading, maintenance or safe towing practices.
Active Calibration
The Tow-Pro Elite V3 automatically learns its mounting orientation while the vehicle is being driven and the brakes are applied.
No manual initial calibration procedure is normally required. Calibration typically completes within approximately 20 braking applications under normal driving conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | REDARC |
| Model | Tow-Pro Elite V3 |
| Part Number | EBRH-ACCV3 |
| Operating Voltage | 9–32V DC |
| Vehicle Systems | 12V / 24V |
| Braking Modes | Proportional / User-Controlled |
| Trailer Axles | 1–3 |
| Trailer Brake Types | Electric and compatible electric/hydraulic |
| Remote Head Cable | 1 metre |
| Operating Temperature | -20°C to 60°C |
| Product Weight | 200g |
| Manufacturer Warranty | 2 years |
| GTIN | 9338628004720 |
Vehicle Compatibility & Installation
The REDARC Tow-Pro Elite V3 is suitable for a wide range of modern vehicles, including many Toyota, Ford, Isuzu, Mazda, Mitsubishi, Nissan and other passenger and commercial vehicles.
Installation requirements vary depending on the vehicle's electrical system, factory towing equipment and safety features.
Vehicle-specific REDARC wiring kits and dashboard switch inserts may be required or recommended for certain models.
Important Information
Brake controller supplied as a standalone product.
Vehicle-specific wiring kits, dashboard switch inserts and installation are sold separately unless expressly included.
Installation must be compatible with the vehicle's electrical and braking systems.
Trailer brakes must be correctly adjusted and maintained.
Professional installation is recommended.
