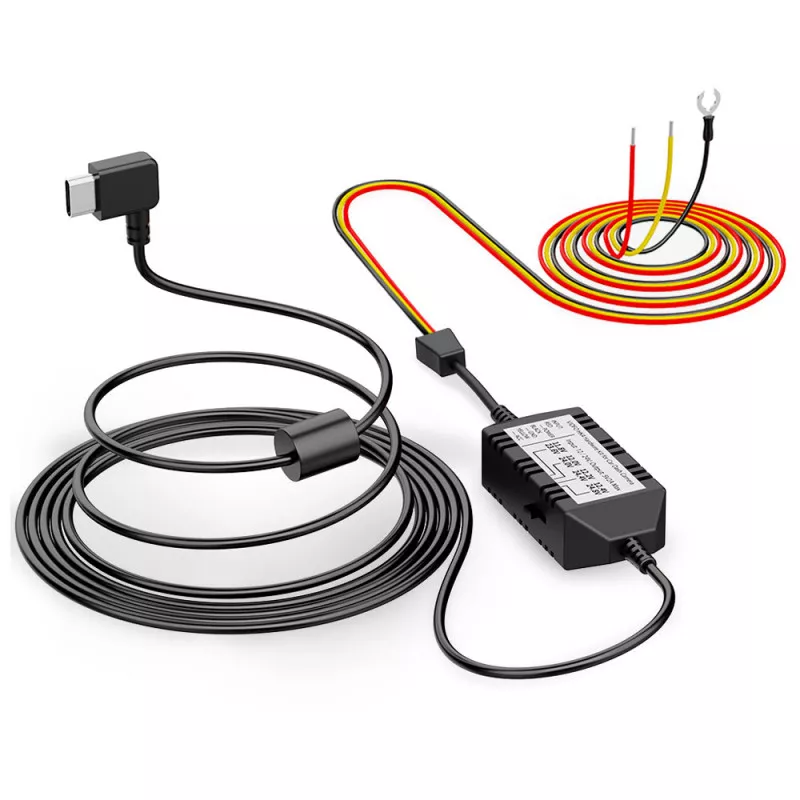

VIOFO HK4 Type-C Hardwire Kit – Parking Mode & Battery Protection
VIOFO HK4 Type-C Hardwire Kit – Parking Mode & Battery Protection
Enable Parking Mode on Your VIOFO Dashcam
The VIOFO HK4 Type-C Hardwire Kit provides a dedicated power connection for compatible VIOFO dash cameras, allowing them to continue recording while your vehicle is parked.
Connected directly to the vehicle's fuse box, the HK4 provides constant power, ignition detection and adjustable low-voltage protection.
It also allows for a clean, discreet installation without relying on your vehicle's cigarette lighter or accessory socket.
Key Features
Automatic Parking Mode: Allows compatible VIOFO dashcams to switch between driving and parking recording modes automatically.
Adjustable Battery Protection: Four selectable voltage cut-off settings help prevent excessive discharge of the vehicle's battery.
Concealed Installation: Keeps power cables neatly routed behind interior trims.
ACC Ignition Detection: Detects when the vehicle is switched on or off.
12V & 24V Compatibility: Suitable for compatible passenger vehicles and commercial vehicles.
USB Type-C Connection: Designed for supported VIOFO dash cameras.
4-Metre Cable: Provides flexibility when routing wiring from the fuse box to the dashcam.
Adjustable Voltage Cut-Off Settings
The HK4 monitors the vehicle's battery voltage and automatically disconnects power to the dashcam when the selected threshold is reached.
12V vehicles: 11.8V / 12.0V / 12.2V / 12.4V
24V vehicles: 23.6V / 24.0V / 24.4V / 24.8V
A higher cut-off voltage provides more conservative battery protection but may reduce parking recording duration.
Compatible VIOFO Dashcams
Compatible models include:
VIOFO A229 Pro
VIOFO A229 Plus
VIOFO A229 Ultra
VIOFO A119 Mini 2
VIOFO A119M Pro
Other models may also be supported. Please confirm compatibility before ordering.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | VIOFO |
| Model | HK4 |
| Input Voltage | 12–24V DC |
| Output | 5V / 2A |
| Connector | USB Type-C |
| Cable Length | 4 metres |
| Power Connections | Battery, ACC and Ground |
| Battery Protection | Adjustable low-voltage cut-off |
| Operating Temperature | -30°C to 60°C |
Important Information
This product is a hardwire kit only; dashcam and installation are not included.
Parking mode must be supported and enabled on the connected dashcam.
Parking recording duration depends on the vehicle battery, cut-off setting and camera power consumption.
Fuse connections and any required installation accessories must suit the vehicle.
Professional installation is recommended.
